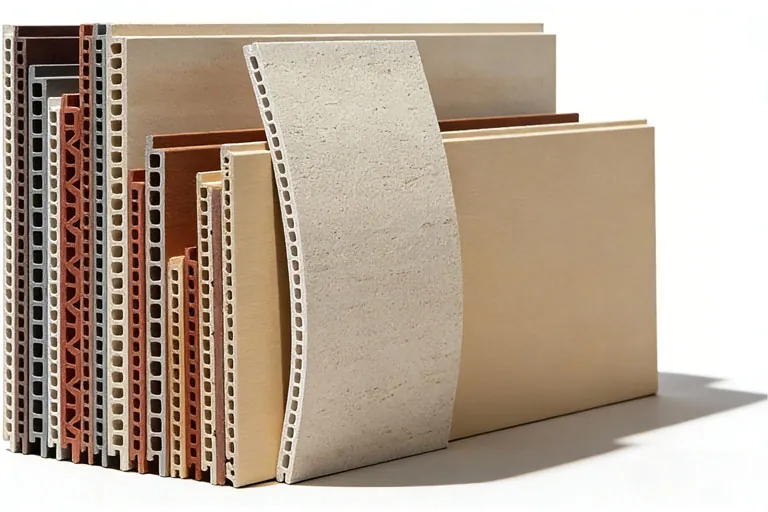

Terracotta Panel

Premium architectural panels offering exceptional versatility and quality for both interior and exterior applications. Discover the perfect blend of traditional craftsmanship and modern innovation.

Superior Terracotta Panel Solutions

Our terracotta panels represent the pinnacle of architectural innovation, combining time-tested materials with cutting-edge manufacturing techniques. Each panel is meticulously crafted to deliver exceptional durability, aesthetic appeal, and performance across diverse applications.

Engineered for both interior and exterior use, these panels offer architects and designers unprecedented flexibility in creating stunning facades and interior spaces. With customizable dimensions, textures, and finishes, our terracotta panels adapt to any architectural vision while maintaining superior structural integrity.

50+

Years Durability

100%

Natural Materials

Custom

Dimensions

Global

Standards

Terracotta Panel

Technical Specifications

Comprehensive technical data ensuring optimal performance and compliance with international standards

Material Properties

Material Composition Natural Clay & Minerals
Firing Temperature 1100-1200°C
Water Absorption ≤ 6%
Compressive Strength ≥ 50 MPa
Flexural Strength ≥ 8 MPa
Thermal Conductivity 0.6-0.8 W/mK
Freeze-Thaw Resistance 100 cycles

Dimensions & Installation

Standard Length 100-1200mm
Standard Width 100-600mm
Thickness Range 12-30mm
Weight per m² 35-55 kg/m²
Installation Method Mechanical Fixing
Joint Width 8-15mm
Custom Sizes Available

ISO 9001:2015

Quality Management System Certified

CE Marking

European Conformity Standards

LEED Compatible

Sustainable Building Certification

Key Features & Benefits

Discover the advantages that make our terracotta panels the preferred choice for architects worldwide

Weather Resistance

Superior protection against UV radiation, thermal cycling, and moisture infiltration ensuring long-term performance in all climates.

Fire Resistance

Non-combustible material with excellent fire resistance properties, contributing to building safety and compliance with fire codes.

Design Flexibility

Extensive range of colors, textures, and finishes allowing unlimited creative possibilities for unique architectural expressions.

Thermal Performance

Excellent thermal mass properties providing natural insulation and contributing to energy-efficient building performance.

Easy Maintenance

Low maintenance requirements with natural self-cleaning properties and resistance to staining and weathering.

Sustainability

Made from natural clay materials with environmentally responsible manufacturing processes and full recyclability.

Applications & Use Cases

Versatile solutions for diverse architectural projects across multiple sectors

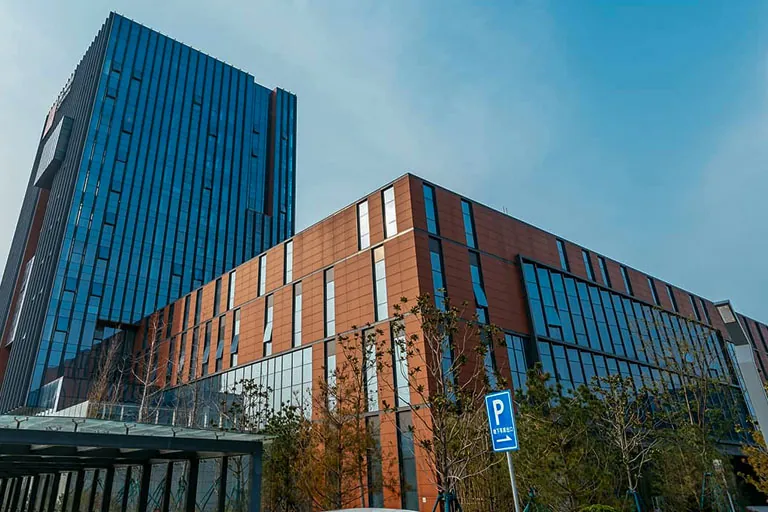

Commercial Buildings

Commercial Buildings

Office complexes, retail centers, and mixed-use developments

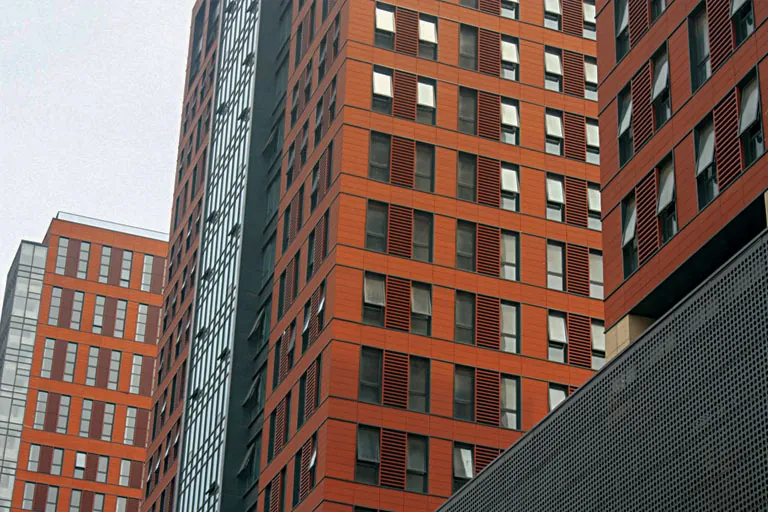

Residential Projects

Residential Projects

Apartment buildings, condominiums, and private residences

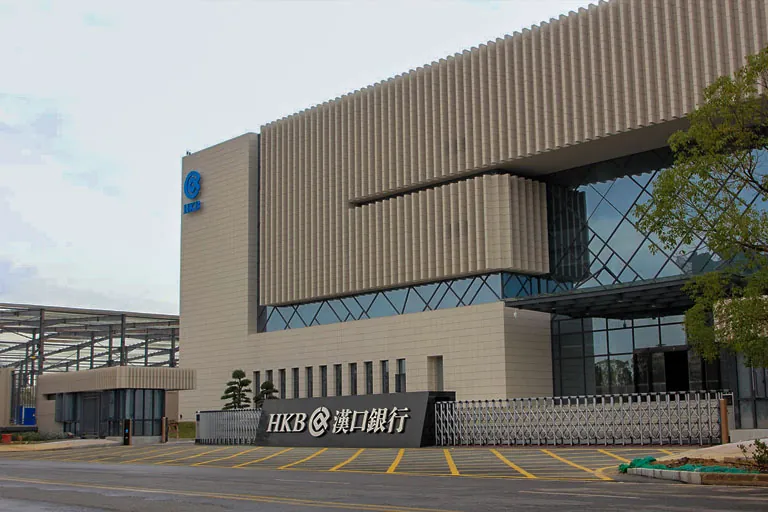

Cultural Institutions

Cultural Institutions

Museums, theaters, libraries, and community centers

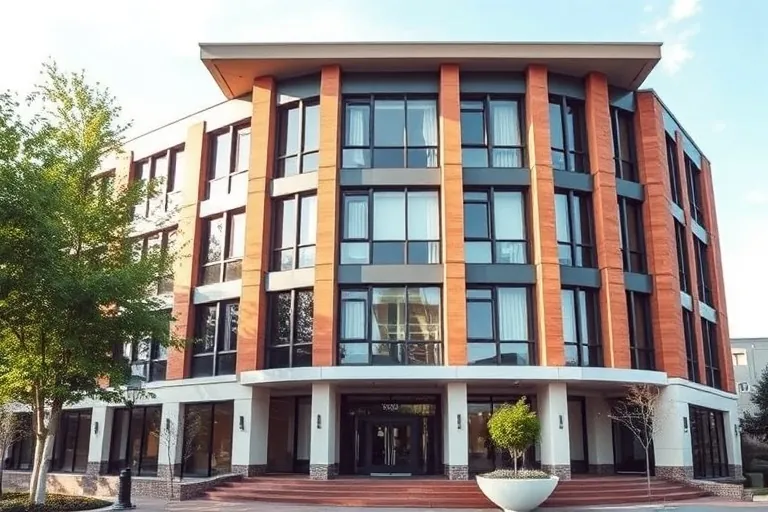

Educational Facilities

Educational Facilities

Universities, schools, and research institutions

Installation Process

Professional installation guidance ensuring optimal performance and longevity

1

Substrate Preparation

Ensure proper substrate alignment, waterproofing, and structural integrity before installation begins.

2

Mounting System

Install mechanical fixing components and support framework according to engineering specifications.

3

Panel Installation

Carefully position and secure each panel maintaining proper alignment and joint spacing throughout.

4

Quality Control

Conduct thorough inspection and weatherproofing to ensure complete installation integrity.

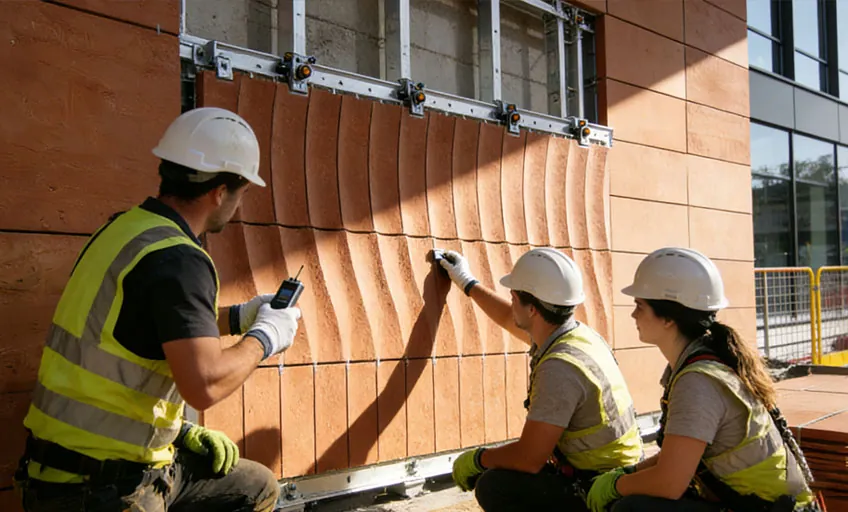

Professional Installation Support

Our technical team provides comprehensive installation support including detailed drawings, specifications, and on-site consultation to ensure successful project completion.

  • Detailed installation drawings
  • Technical specifications
  • On-site consultation
  • Quality assurance protocols
Professional Installation Support

Color & Finish Options

Extensive customization possibilities to match any architectural vision

Terracotta Red

Burnt Orange

Ochre Yellow

Natural Brown

Stone Gray

Charcoal

Off White

Light Beige

Smooth

Clean, refined surface

Textured

Natural clay texture

Grooved

Linear surface pattern

Embossed

Raised pattern design

Glazed Finish

Enhanced color depth and weather protection

Matte Finish

Natural clay appearance with subtle elegance

Satin Finish

Balanced sheen for contemporary aesthetics

Quality Assurance

Rigorous quality control processes ensuring consistent excellence in every product

Manufacturing Excellence

Our state-of-the-art manufacturing facility employs advanced quality control systems at every stage of production. From raw material selection to final inspection, each terracotta panel undergoes comprehensive testing to ensure it meets our exacting standards.

Raw Material Testing

Comprehensive analysis of clay composition and mineral content

Production Monitoring

Continuous quality control throughout the manufacturing process

Performance Testing

Rigorous testing for strength, durability, and weather resistance

Final Inspection

Detailed visual and dimensional quality assessment

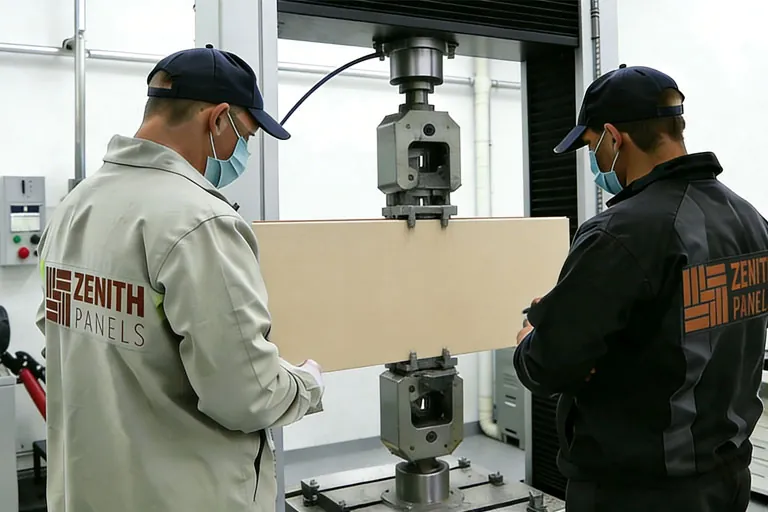

Terracotta Panel tensile test

Related Products

Explore our complete range of complementary terracotta solutions

Terracotta Mosaic Tiles

Decorative mosaic solutions offering endless design possibilities for both interior and exterior applications.

Learn More →

Back Fixing Component

Comprehensive range of mechanical fixing systems ensuring secure and efficient installation of all cladding products.

Learn More →

Thin Facade Brick

Lightweight brick veneer solutions providing authentic brick appearance with reduced structural load requirements.

Learn More →

Artificial Stone

High-performance synthetic stone materials offering natural aesthetics with enhanced durability and consistency.

Learn More →

Downloads & Resources

Access comprehensive technical documentation and support materials

Technical Specifications

Detailed product specifications and performance data

Installation Guide

Step-by-step installation instructions and best practices

CAD Files

AutoCAD drawings and 3D models for design integration

Certifications

Quality certifications and compliance documentation

Color Chart

Complete color and finish options reference guide

Calculation Tools

Quantity estimation and project planning spreadsheets
