What are the standard dimensions and sizes of Terracotta Bricks?

Available in three main sizes: Standard Brick (215mm × 102.5mm × 65mm, 2.8kg), Modular Brick (194mm × 92mm × 57mm, 2.2kg), and King Size Brick (248mm × 76mm × 65mm, 2.5kg). Standard weight ranges from 2.2-2.8kg per brick.

What are the key technical specifications of Terracotta Bricks?

Key specifications: Compressive strength ≥35 MPa, Water absorption 8-15%, Bulk density 1800-2000 kg/m³, Thermal conductivity 0.6-0.8 W/mK, Chemical composition (SiO₂ 55-65%, Al₂O₃ 15-20%, Fe₂O₃ 4-8%, CaO 2-5%), Freeze-thaw resistance 150+ cycles, Fire rating Class A1, Expected service life 50+ years.

What color options are available?

Six standard colors: Classic Red (traditional terracotta), Rustic Brown (warm brown tone), Golden Buff (light golden color), Charcoal Gray (modern gray finish), Natural Clay (unglazed natural), Antique Copper (aged copper patina). Custom color options available upon request.

What are the main applications for Terracotta Bricks?

Applications include: Residential construction (homes, townhouses), Commercial buildings (offices, retail), Landscape architecture (garden walls, retaining structures), Heritage restoration (historical projects), Industrial applications (facilities, warehouses), Decorative features (arches, columns, architectural details).

What installation guidelines should be followed?

Installation process: 1) Site preparation and drainage, 2) Foundation construction with reinforced concrete, 3) Moisture barrier installation, 4) Mortar preparation (1:3 cement to sand ratio), 5) Brick laying with consistent 10mm joints, 6) Quality control for plumb and alignment. Professional masonry techniques required for optimal results.

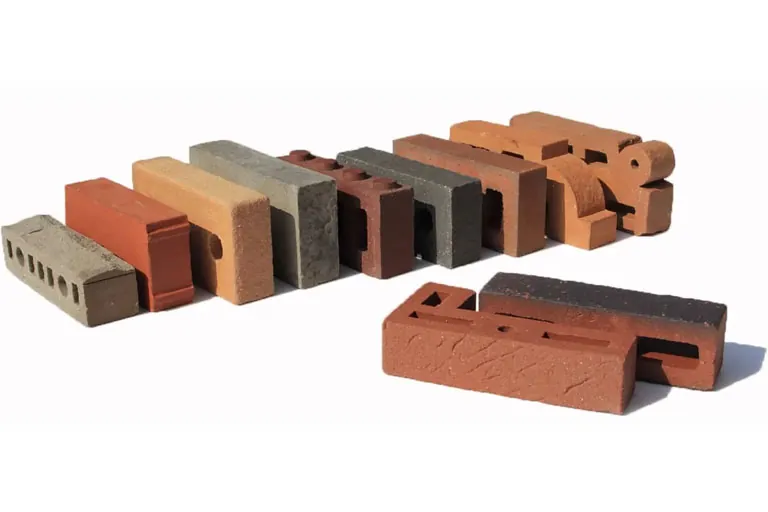

Terracotta Brick | ZP Zenith Panels Co., Ltd.

Premium Terracotta Brick Solutions

Our terracotta bricks represent the perfect fusion of time-honored craftsmanship and cutting-edge manufacturing technology. Each brick is meticulously crafted from the finest natural clay materials, ensuring exceptional durability, aesthetic appeal, and structural integrity for both residential and commercial applications.

With superior weather resistance, thermal performance, and natural beauty, our terracotta bricks provide architects and builders with reliable solutions that stand the test of time while maintaining their distinctive character and charm.

50+

Years Lifespan

15

Color Options

A1

Fire Rating

ISO

Certified Quality

Technical Specifications

Comprehensive technical data and performance characteristics of our terracotta brick products

Standard Brick

Length: 215mm (8.5")
Width: 102.5mm (4")
Height: 65mm (2.5")
Weight: 2.8kg (6.2 lbs)

Modular Brick

Length: 194mm (7.6")
Width: 92mm (3.6")
Height: 57mm (2.2")
Weight: 2.2kg (4.9 lbs)

King Size Brick

Length: 248mm (9.8")
Width: 76mm (3")
Height: 65mm (2.5")
Weight: 2.5kg (5.5 lbs)

Applications & Features

Versatile terracotta brick solutions for diverse architectural and construction applications

Residential Construction

Perfect for single-family homes, townhouses, and residential complexes. Provides excellent insulation properties and timeless aesthetic appeal.

Commercial Buildings

Ideal for office buildings, retail centers, and institutional projects requiring durability and professional appearance.

Landscape Architecture

Excellent for garden walls, retaining structures, and decorative landscape elements with natural weather resistance.

Heritage Restoration

Specially manufactured bricks matching historical specifications for authentic restoration and conservation projects.

Industrial Applications

Heavy-duty bricks for industrial facilities, warehouses, and manufacturing plants requiring superior strength and durability.

Decorative Features

Artistic and decorative applications including arches, columns, and architectural details with custom shapes and finishes.

Product Gallery

Explore our comprehensive range of terracotta brick products and applications

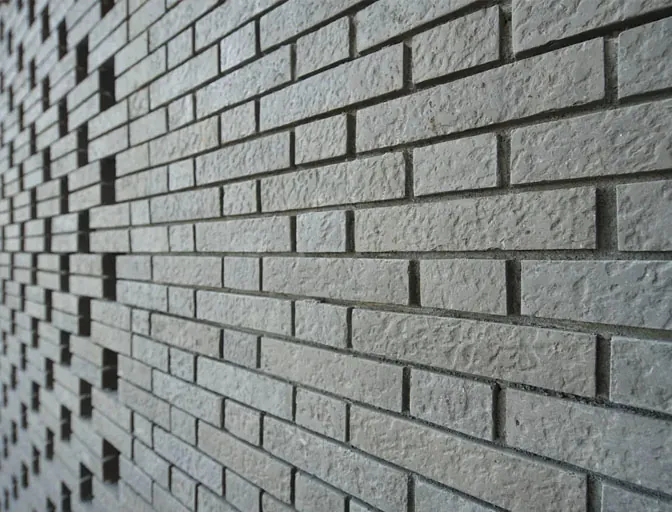

Standard Brick Pattern

Traditional running bond layout

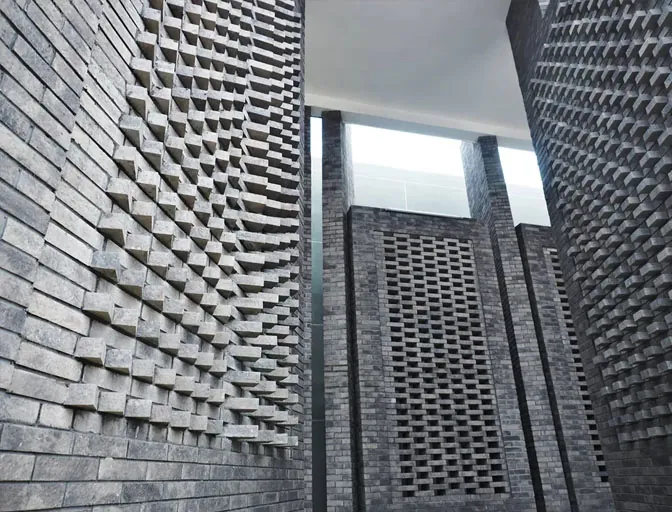

Herringbone Pattern

Decorative diagonal arrangement

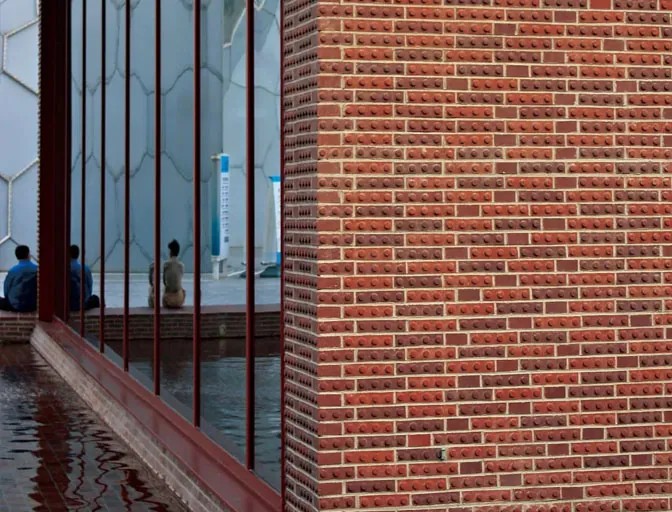

Flemish Bond

Classic European masonry style

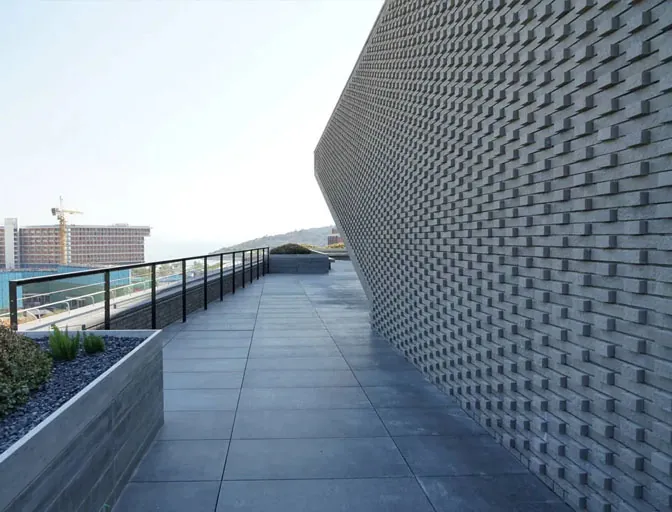

Stack Bond

Modern vertical alignment

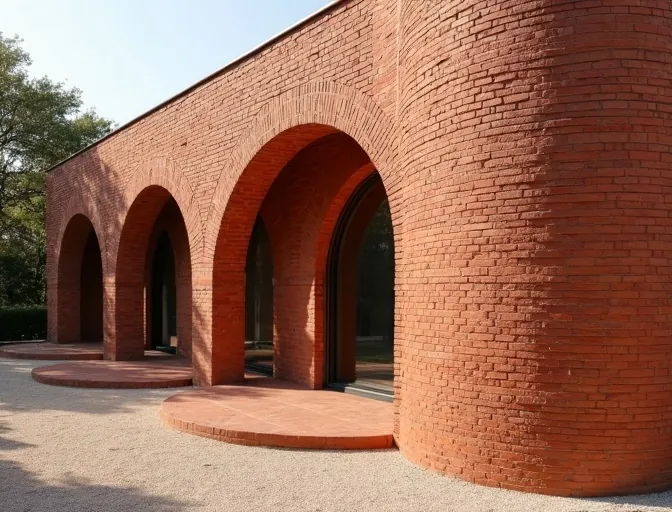

Curved Applications

Architectural curved elements

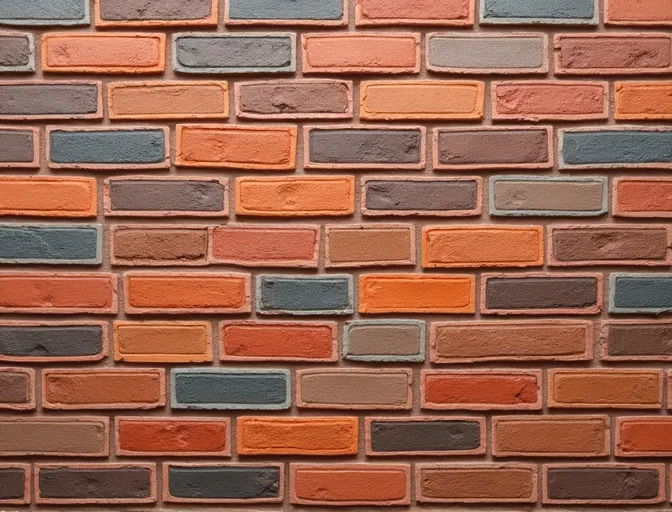

Mixed Colors

Artistic color combinations

Installation Guidelines

Professional installation recommendations for optimal performance and longevity

Preparation & Foundation

1

Site Preparation

Ensure proper site drainage and level foundation. Remove all debris and vegetation from the construction area.

2

Foundation Requirements

Construct reinforced concrete foundation with proper depth and width according to local building codes.

3

Moisture Barrier

Install damp-proof course and moisture barriers to prevent water infiltration and protect structural integrity.

Installation Process

4

Mortar Preparation

Use appropriate mortar mix ratio (1:3 cement to sand) with proper consistency for optimal bonding strength.

5

Brick Laying

Maintain consistent joint thickness (10mm) and ensure proper alignment using string lines and spirit levels.

6

Quality Control

Regular inspection of plumb, level, and alignment. Clean excess mortar and maintain consistent appearance.

Featured Projects

Discover how our terracotta bricks have been successfully implemented in prestigious projects worldwide

Riverside Manor Estate

Location: Cambridge, United Kingdom

A prestigious residential development featuring our premium terracotta bricks in traditional English bond pattern. The project showcases exceptional craftsmanship and timeless architectural elegance.

Standard Brick Charcoal Gray

Completed: 2023 | Area: 1,000 m²

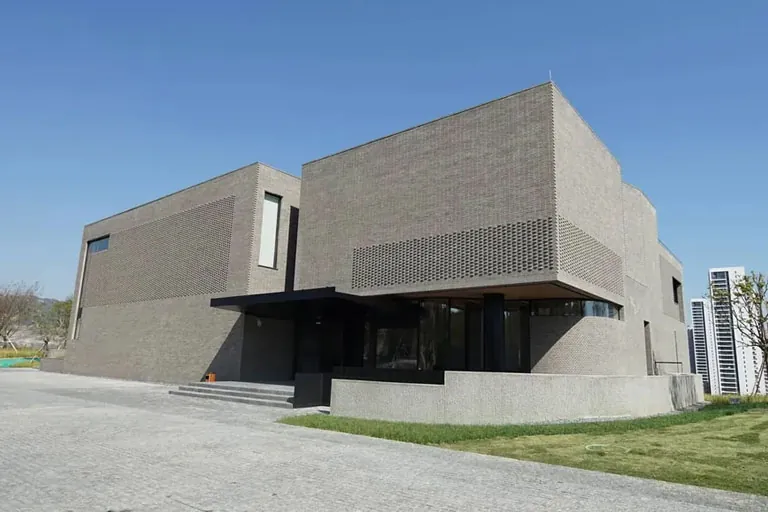

Metropolitan University Library

Location: Boston, Massachusetts, USA

A state-of-the-art academic facility incorporating our modular terracotta bricks with innovative stack bond pattern. The design balances traditional materials with contemporary architectural vision.

Modular Brick Charcoal Gray

Completed: 2024 | Area: 3,500 m²

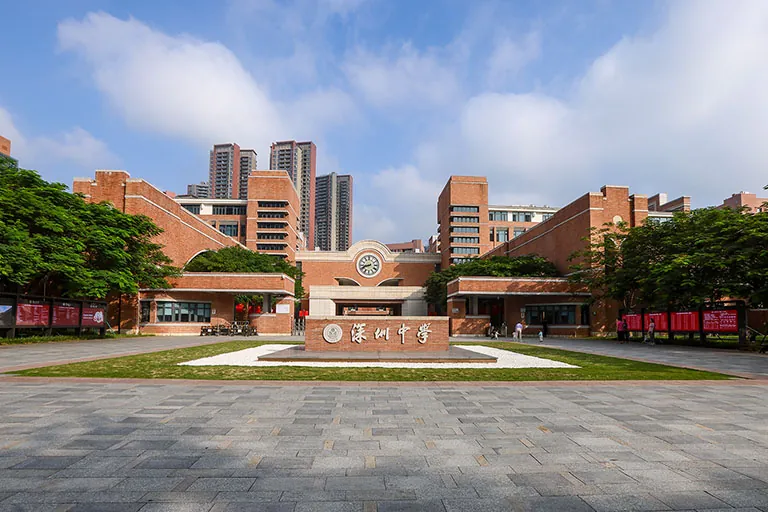

Shenzhen Middle School

Location: Shenzhen, China

A state-of-the-art academic facility incorporating our modular terracotta bricks with innovative stack bond pattern. The design balances traditional materials with contemporary architectural vision.

Modular Brick Classic Red

Completed: 2024 | Area: 9,500 m²

Global Makers Town

Location: Foshan, China

the Global Makers Town aims to create an innovation and entrepreneurship eco-chain of "Makers' space, incubator, accelerator and industrial park".

Modular Brick Classic Red

Completed: 2023 | Area: 8,500 m²

Technical Resources

Comprehensive technical documentation and support materials for professionals

Technical Data Sheet

Comprehensive product specifications and performance data

Installation Guide

Step-by-step installation instructions and best practices

CAD Drawings

Detailed technical drawings and 3D models for design

Product Catalog

Complete product range with specifications and applications
