What are the main features of the Brick Cladding System?

Key features include: Modular design for 50% faster installation, Superior weather resistance (Water absorption ≤6%, F2 frost resistance), Fire rating Class A1, Thermal conductivity 0.6-0.8 W/mK, Wind load resistance up to 2.5 kN/m², Installation rate 15-20 m²/day, Expected lifespan 30+ years, and Multiple color/finish options.

What are the standard dimensions and specifications?

Standard panel size: 600mm × 200mm, Thickness: 18-25mm, Weight: 35-45 kg/m². Technical specifications include: Water absorption ≤6%, Firing temperature 1100-1200°C, Thermal conductivity 0.6-0.8 W/mK, Fixing system: Mechanical back-fixing with steel/aluminum rail support.

What are the typical applications for this system?

Applications include: Commercial buildings (office towers, retail centers, hotels), Residential projects (apartment complexes, condominiums), Institutional facilities (schools, hospitals, government buildings), Industrial applications (warehouses, manufacturing facilities), Cultural & recreation facilities (museums, sports centers), and Transportation infrastructure (airports, train stations).

How does the installation process work?

Four-step installation process: 1) Site preparation and structural assessment, 2) Rail system installation (steel/aluminum support rails), 3) Panel mounting using mechanical fixing systems, 4) Sealing and finishing with weatherproof sealants. Installation efficiency is 50% faster than traditional methods with minimal specialized labor required.

What certifications and standards does the system meet?

System meets: European Standard EN 14411, ASTM Standard C1272, ISO Certification 9001:2015, Environmental standards for LEED compliance, Quality assurance with CE Marking, and comprehensive fire safety and weather resistance standards for professional construction applications.

Brick Cladding System | ZP Zenith Panels Co., Ltd.

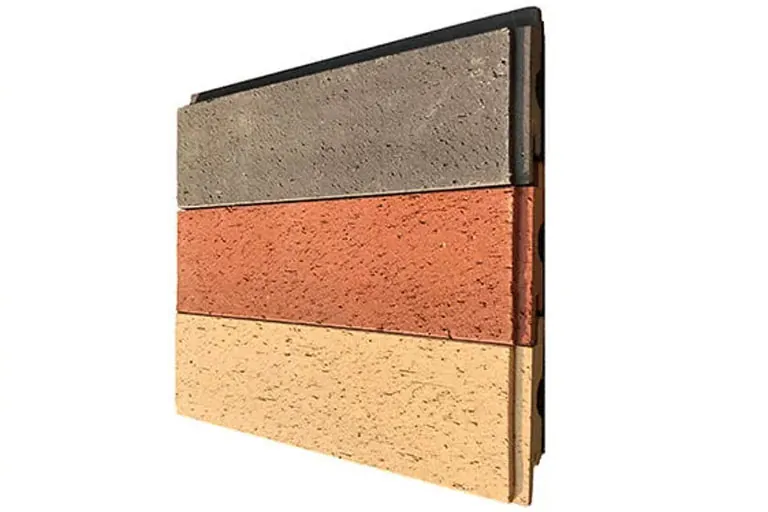

Advanced Brick Cladding System

Our Brick Cladding System represents the pinnacle of modern facade technology, combining traditional brick aesthetics with innovative modular design. This comprehensive solution delivers exceptional durability, weather resistance, and installation efficiency for commercial and residential projects worldwide.

Engineered for superior performance, our system features precision-manufactured components that ensure consistent quality and seamless integration. The modular approach significantly reduces installation time while maintaining the highest standards of structural integrity and aesthetic appeal.

50%

Faster Installation

30+

Years Lifespan

100%

Weather Resistant

15+

Finish Options

Key Features & Benefits

Discover why our Brick Cladding System is the preferred choice for architects and contractors worldwide

Modular Design

Precision-engineered modular components ensure consistent quality and enable rapid installation with minimal waste and maximum efficiency.

Superior Weather Resistance

Advanced material composition and protective coatings provide exceptional resistance to UV radiation, moisture, and extreme weather conditions.

Aesthetic Versatility

Wide range of colors, textures, and finishes available to complement any architectural style and design vision.

Easy Maintenance

Low-maintenance surface treatments and durable construction minimize ongoing care requirements and reduce lifecycle costs.

Sustainable Materials

Eco-friendly production processes and recyclable materials support green building initiatives and environmental responsibility.

Professional Installation Support

Comprehensive technical support and training programs ensure proper installation and optimal system performance.

Technical Specifications

Detailed technical information for architects, engineers, and construction professionals

Dimensions & Materials

Standard Panel Size 600mm x 200mm

Thickness Range 18-25mm

Weight per m² 35-45 kg

Material Composition High-grade terracotta

Firing Temperature 1100-1200°C

Performance Ratings

Water Absorption ≤ 6%

Frost Resistance F2 Rating

Fire Rating Class A1

Thermal Conductivity 0.6-0.8 W/mK

Wind Load Resistance Up to 2.5 kN/m²

Installation Methods

Fixing System Mechanical back-fixing

Support Structure Steel/Aluminum rail system

Installation Rate 15-20 m²/day

Joint Width 6-10mm

Sealant Type Structural glazing sealant

Compliance Standards

European Standard EN 14411

ASTM Standard ASTM C1272

ISO Certification ISO 9001:2015

Environmental LEED Compliant

Quality Assurance CE Marking

Applications & Use Cases

Versatile solutions for diverse architectural projects and building types

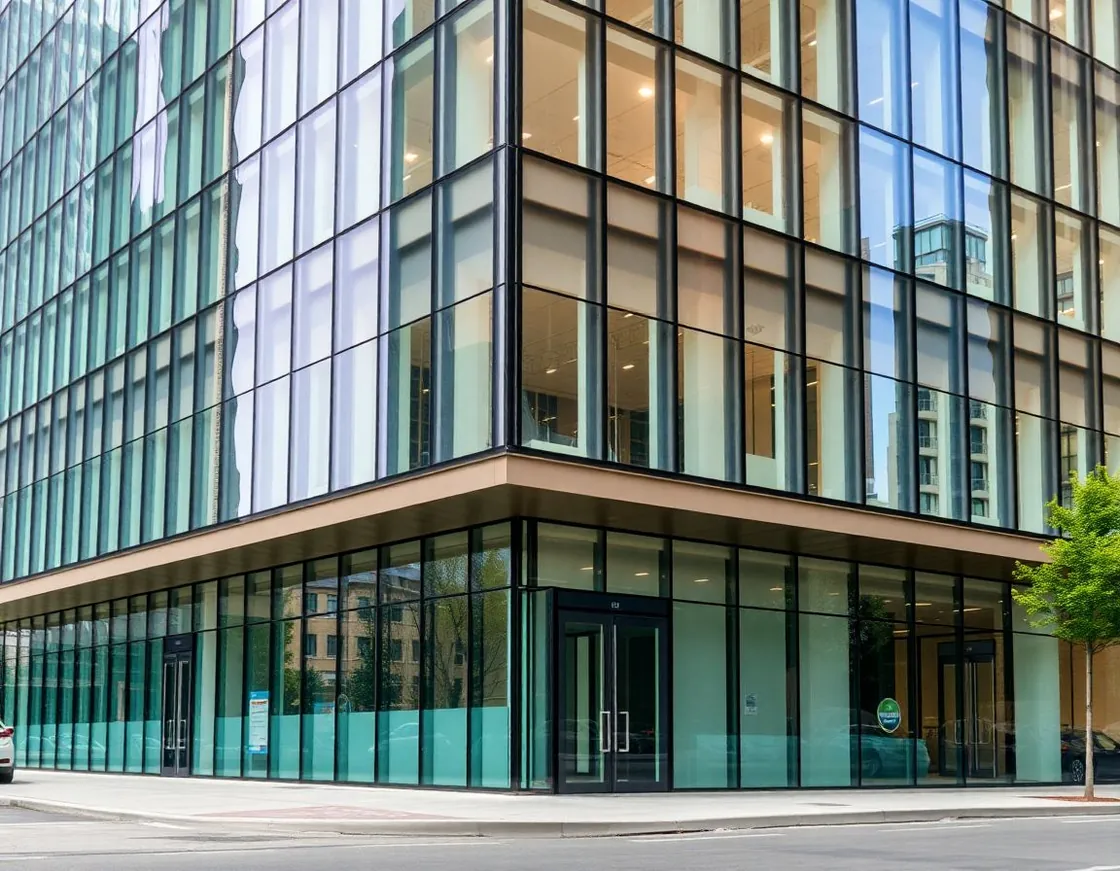

Commercial Buildings

Ideal for office complexes, retail centers, and mixed-use developments requiring durable, low-maintenance facades with professional aesthetics.

• Office towers and corporate headquarters
• Shopping centers and retail complexes
• Hotels and hospitality facilities

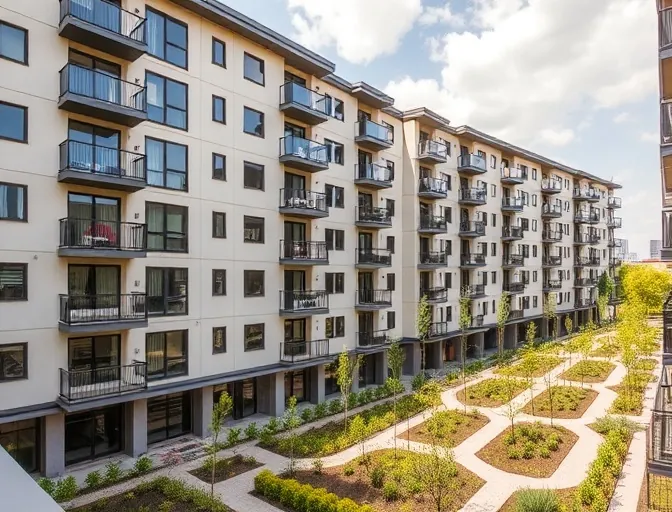

Residential Projects

Perfect for apartment complexes, condominiums, and housing developments seeking attractive, energy-efficient exterior solutions.

• Multi-family residential complexes
• Luxury condominiums and townhouses
• Student housing and dormitories

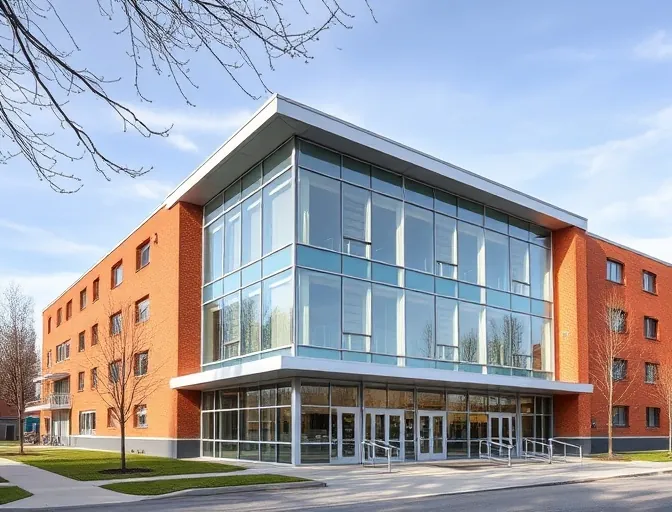

Institutional Facilities

Suitable for schools, hospitals, and government buildings requiring long-lasting, safe, and aesthetically pleasing exterior finishes.

• Educational institutions and universities
• Healthcare facilities and hospitals
• Government and civic buildings

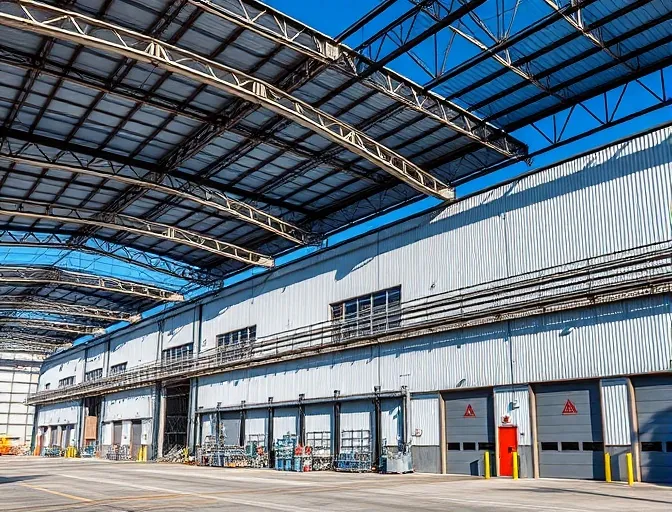

Industrial Applications

Excellent for warehouses, manufacturing facilities, and logistics centers needing robust, weather-resistant exterior cladding systems.

• Manufacturing and production facilities
• Logistics and distribution centers
• Data centers and technical facilities

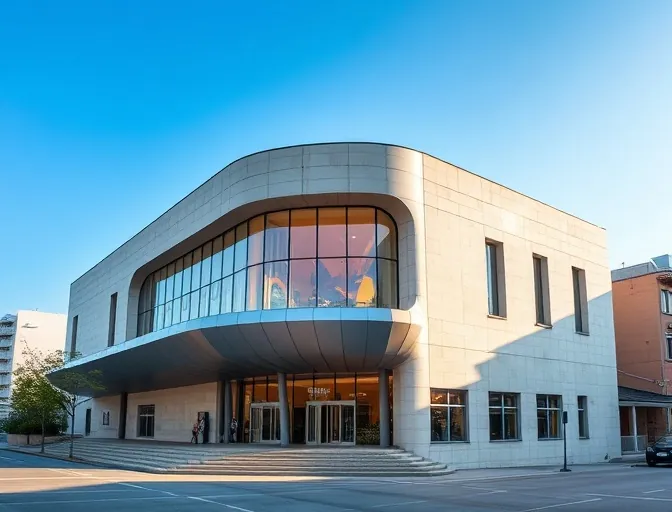

Cultural & Recreation

Ideal for museums, theaters, and sports facilities where architectural expression and durability are equally important.

• Museums and cultural centers
• Sports facilities and recreation centers
• Entertainment venues and theaters

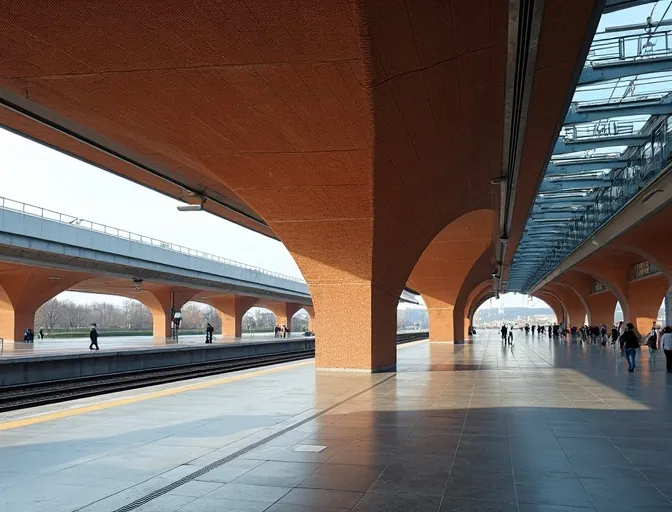

Transportation Infrastructure

Perfect for airports, train stations, and transit facilities requiring high-performance materials that withstand heavy usage.

• Airport terminals and facilities
• Railway and subway stations
• Bus terminals and transport hubs

Installation Process

Step-by-step guide to efficient and professional installation of our Brick Cladding System

1

Site Preparation

Structural assessment, surface preparation, and installation of support framework according to engineering specifications.

2

Rail System Installation

Precise installation of horizontal and vertical support rails with proper alignment and spacing for optimal panel mounting.

3

Panel Mounting

Sequential installation of brick cladding panels using mechanical fixing systems, ensuring proper alignment and spacing.

4

Sealing & Finishing

Application of weatherproof sealants, joint finishing, and final quality inspection to ensure optimal performance.

Installation Time

50% faster than traditional brick construction methods

Crew Requirements

Minimal specialized labor needed with comprehensive training support

Equipment

Standard construction tools and lifting equipment required

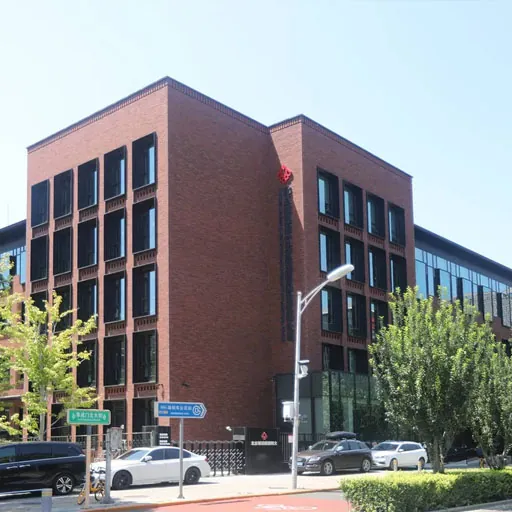

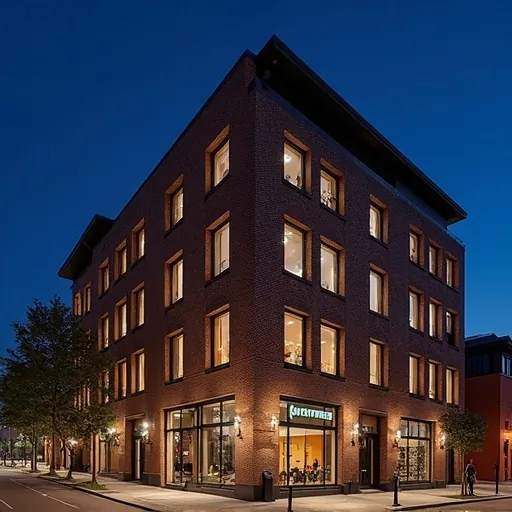

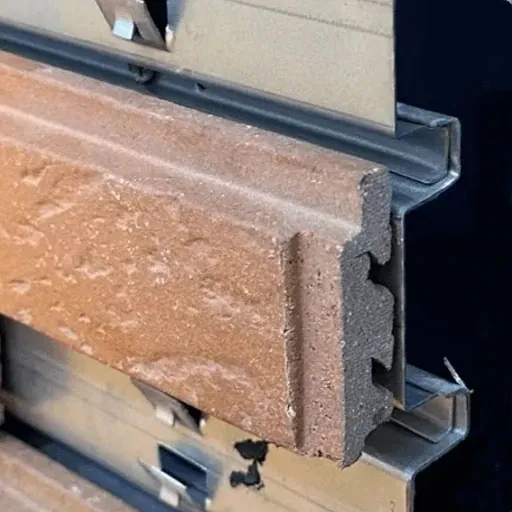

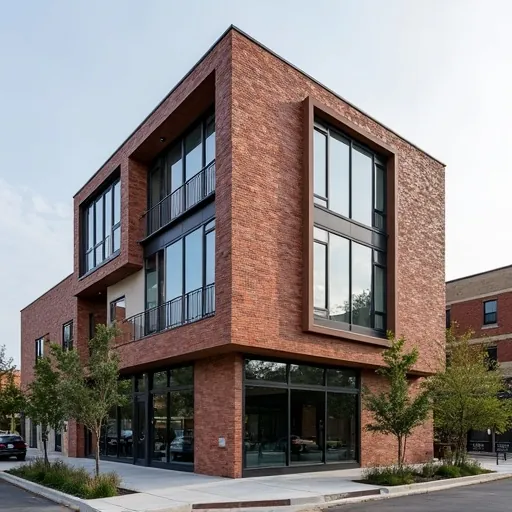

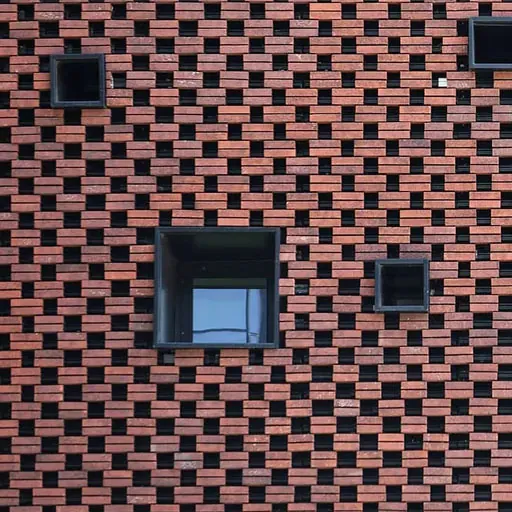

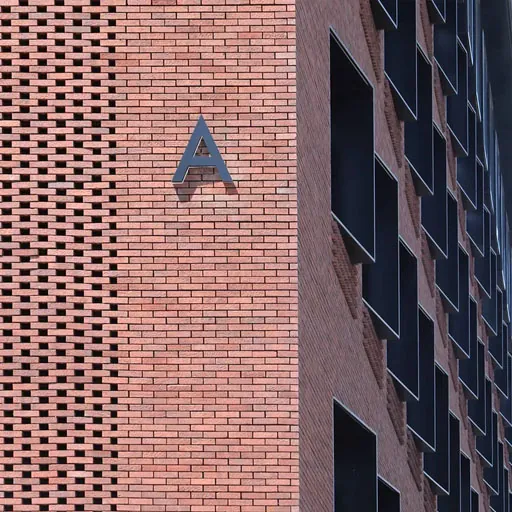

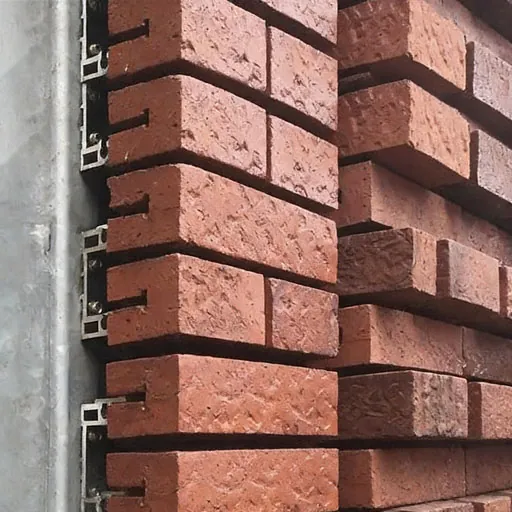

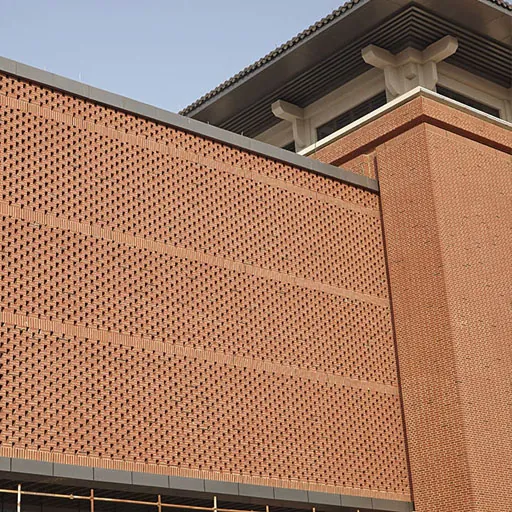

Product Gallery

Explore our Brick Cladding System from different angles and see completed installations

Related Products

Discover complementary products that work perfectly with our Brick Cladding System

Technical Downloads

Access comprehensive technical documentation and resources for your project planning

Product Specification Sheet

Detailed technical specifications, dimensions, and performance data for the Brick Cladding System.

Installation Guide

Step-by-step installation instructions with detailed drawings and best practices.

CAD Files & Drawings

AutoCAD files, 3D models, and technical drawings for design integration.

Certificates & Standards

Quality certifications, test reports, and compliance documentation.

Calculation Tools

Material quantity calculators and structural load calculation spreadsheets.

Product Presentation

Comprehensive product overview presentation for project stakeholders.
