What are the main categories of back fixing components?

Main categories include: Mechanical Anchors (high-strength anchor systems), Baguette Fixing (aluminum and stainless steel attachment systems), Fixing Clipper (insertion systems for overlapping panels), Fixing Cantilever (holder systems with adjustable screws), Advanced Bracket Systems (high-performance structural brackets), and Sealing Solutions (weatherproof sealing systems). Each category includes multiple specialized components tailored to different facade requirements and structural demands.

What are the key technical specifications?

Key specifications: Materials 316L Stainless Steel / Aluminum Alloy 6061-T6, Load capacity up to 2.5 kN/m², Temperature range -40°C to +80°C, Thermal movement accommodation ±25mm, Wind load resistance up to 3.0 kPa, Seismic performance zone 4 compliance, Corrosion resistance C5-M marine environment rating, Surface treatment passivation, Quality certifications CE Marking, ISO 9001:2015, ETAG 034, Performance warranty 25 years, Installation temperature -10°C to +40°C.

What applications are suitable for these fixing systems?

Applications include: Commercial high-rises requiring superior wind load resistance (up to 3.0 kPa), Residential complexes needing long-term reliability and minimal maintenance, Cultural institutions demanding aesthetic excellence and structural precision, Educational facilities requiring enhanced safety and sustainability, Office buildings with complex facade designs, Retail centers with large panel installations, Healthcare facilities requiring stringent performance standards, Mixed-use developments with varied architectural requirements.

How are back fixing components installed?

Installation process: 1) Site preparation with substrate inspection and marking, 2) Anchor installation using precise drilling and mechanical anchors with torque specifications, 3) Bracket mounting with alignment verification using precision instruments, 4) Final inspection including load testing and quality verification. Professional installation requires certified installers, specialized tools for drilling and alignment, and adherence to technical drawings and safety guidelines. Installation typically requires 15-20 m²/day per worker productivity.

What quality certifications and testing do these components have?

Certifications include: ISO 9001:2015 Quality Management System, CE Marking for European conformity standards, ETAG 034 for bonded external thermal insulation systems. Testing includes: Material analysis for chemical composition and mechanical properties, Load testing for static and dynamic load capacity, Corrosion testing including salt spray and environmental exposure, Durability assessment with accelerated aging tests, Wind load testing up to 3.0 kPa, Seismic performance testing for zone 4 compliance, Thermal movement testing with ±25mm accommodation.

What are the advantages of 316L stainless steel construction?

Advantages of 316L stainless steel: Superior corrosion resistance especially in marine environments (C5-M rating), High tensile strength and durability, Excellent performance in extreme temperatures (-40°C to +80°C), Low maintenance requirements, Aesthetic appeal with natural finish options, Long service life with 25-year performance warranty, Compatibility with various building materials, Resistance to chemical exposure, Fire resistance properties, and compliance with international building standards for structural fastening applications.

Back Fixing Components | ZP Zenith Panels Co., Ltd.

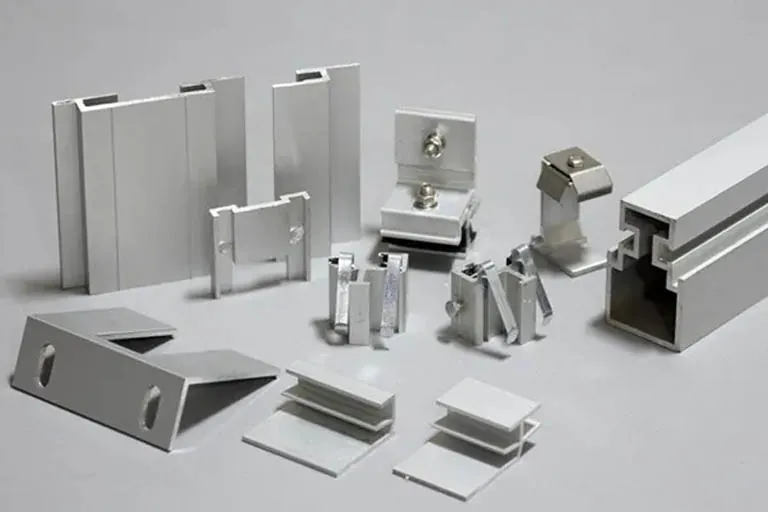

Professional Back Fixing Systems

Our back fixing components represent the pinnacle of mechanical fastening technology for facade systems. Engineered with precision and manufactured to the highest standards, these components ensure the structural integrity and longevity of terracotta installations across diverse architectural applications.

Each component undergoes rigorous testing for load capacity, corrosion resistance, and thermal performance. Our comprehensive range includes mechanical anchors, bracket systems, fastening hardware, and support rails designed to meet the demanding requirements of modern construction projects.

50+

Component Types

316L

Stainless Steel Grade

25 Year

Performance Warranty

CE

Certified Quality

Component Categories

Comprehensive range of mechanical fixing solutions for every facade application

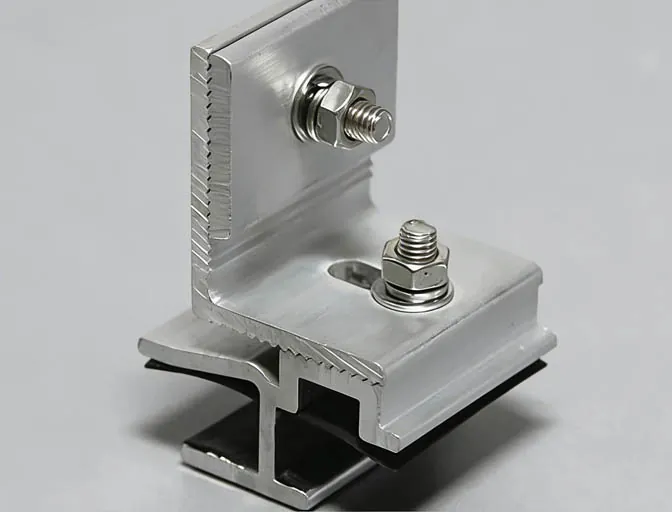

Mechanical Anchors

High-strength anchor systems providing secure attachment to structural substrates with exceptional load-bearing capacity.

Baguette Fixing

aluminum and architectural stainless steel attachment systems can be customized according to facade structural demand.

Fixing Clipper

which fix the facade by inserting into the overlaps of the neighboring panels.

Fixing Clipper

Four clips are needed to install a piece of panel and the upper 2 clips are normally with adjustable screws to achieve appropriate levelness.

Fixing Cantilever

The holders are fixed at the frame, together with fixing clips to stable and support terracotta facades.

Sealing Solutions

Advanced sealing systems ensuring weatherproof performance and thermal efficiency in facade assemblies.

Technical Specifications

Detailed performance characteristics and compliance standards

Material Specifications

Primary Material 316L Stainless Steel

Alternative Options Aluminum Alloy 6061-T6

Coating Passivation Treatment

Corrosion Resistance C5-M Marine Environment

Surface Finish Brushed / Polished

Performance Parameters

Load Capacity Up to 2.5 kN/m²

Temperature Range -40°C to +80°C

Thermal Movement ±25mm Accommodation

Wind Load Resistance Up to 3.0 kPa

Seismic Performance Zone 4 Compliance

Compliance & Certifications

CE Marking

European Conformity Standards

ISO 9001:2015

Quality Management System

ETAG 034

Bonded External Thermal Insulation

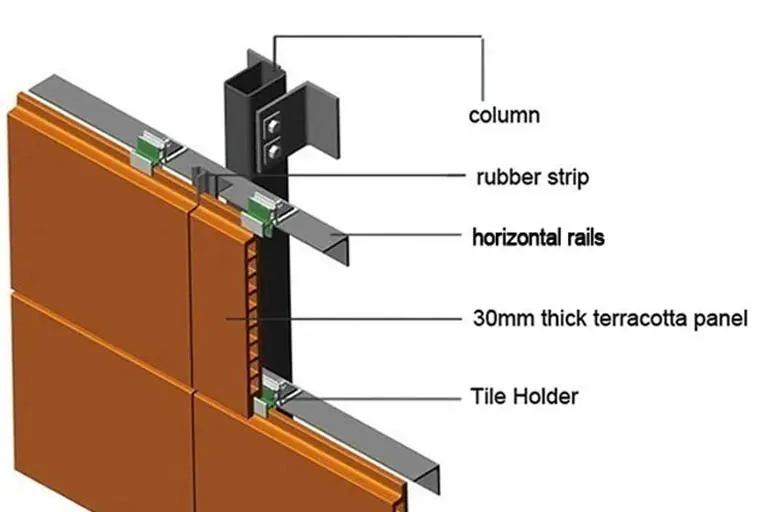

Installation Process

Step-by-step guide for professional installation of back fixing components

Professional Installation

Our back fixing components are designed for efficient installation by qualified professionals. Each system includes comprehensive installation documentation, technical drawings, and safety guidelines to ensure optimal performance and compliance with building codes.

Pre-Installation Assessment

Structural analysis and substrate evaluation

Quality Assurance

Load testing and performance verification

Technical Support

On-site assistance and troubleshooting

01

Site Preparation

Substrate inspection, marking, and drilling preparation according to technical drawings

02

Anchor Installation

Precise drilling and mechanical anchor installation with torque specifications

03

Bracket Mounting

Bracket system attachment and alignment verification using precision instruments

04

Final Inspection

Load testing, adjustment, and quality verification before panel installation

Applications

Versatile fixing solutions for diverse architectural projects

Commercial High-Rises

Advanced fixing systems engineered for tall buildings requiring superior wind load resistance and structural integrity in urban environments.

• Wind load capacity up to 3.0 kPa
• Seismic zone compliance
• High-rise specific anchoring solutions

Residential Complexes

Reliable fixing solutions for residential buildings focusing on long-term performance and minimal maintenance requirements.

• 25-year performance warranty
• Corrosion-resistant materials
• Thermal movement accommodation

Cultural Institutions

Specialized fixing systems for museums, theaters, and cultural centers requiring aesthetic excellence and structural precision.

• Precision alignment capabilities
• Aesthetic integration options
• Custom engineering solutions

Educational Facilities

Durable and safe fixing solutions for schools and universities emphasizing safety, sustainability, and educational environment enhancement.

• Enhanced safety features
• Sustainable material options
• Educational building compliance

Quality Assurance & Certifications

Rigorous testing and international compliance standards

Testing & Verification

Every back fixing component undergoes comprehensive testing in our state-of-the-art laboratories and certified third-party facilities. Our quality assurance program includes material testing, load testing, corrosion testing, and long-term performance evaluation.

Material Analysis

Chemical composition and mechanical properties verification

Load Testing

Static and dynamic load capacity verification

Corrosion Testing

Salt spray and environmental exposure testing

Durability Assessment

Accelerated aging and lifecycle performance evaluation

ISO 9001:2015

Quality Management System Certification

CE Marking

European Conformity Standards Compliance

ETAG 034

European Technical Assessment Guideline

Environmental

Sustainable Manufacturing Practices
