Terracotta Baguette

Linear architectural elements providing distinctive visual texture and dimensional depth to modern building exteriors with superior weather resistance and design flexibility.

Premium Linear Architectural Elements

Terracotta Baguette represents the perfect fusion of traditional craftsmanship and contemporary design innovation. These linear architectural elements create striking vertical or horizontal patterns that add depth, texture, and visual interest to any facade system.

Manufactured using advanced extrusion techniques and high-temperature firing processes, our Terracotta Baguette elements deliver exceptional durability while maintaining the natural beauty and warmth of terracotta materials. Each piece is precision-engineered to ensure consistent dimensions and superior performance.

Dimensional Range

Multiple sizes available from 20mm to 80mm width profiles

Installation System

Compatible with standard curtain wall and cladding systems

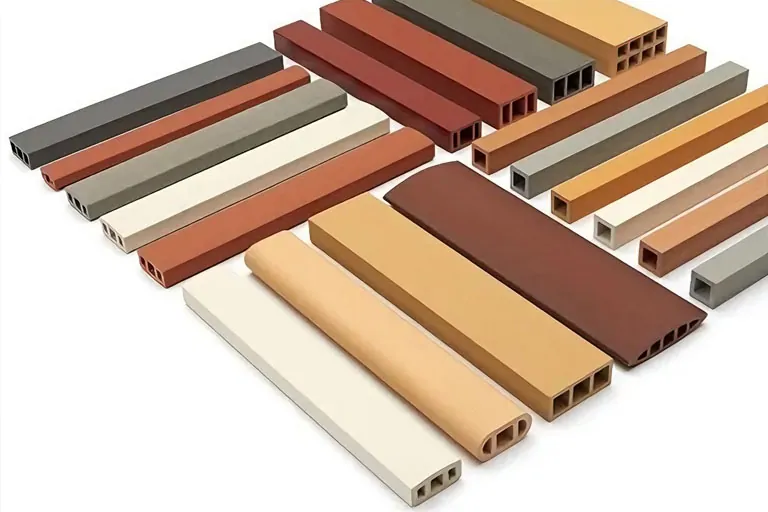

Terracotta Baguette

Key Features & Benefits

Discover why Terracotta Baguette is the preferred choice for architects and designers worldwide

Dimensional Visual Appeal

Creates striking shadow lines and depth variations that enhance architectural aesthetics throughout the day.

Superior Weather Resistance

Engineered to withstand extreme weather conditions with excellent freeze-thaw resistance and UV stability.

Easy Installation System

Standardized mounting systems ensure efficient installation with reduced labor costs and construction time.

Design Flexibility

Available in multiple profiles, lengths, and finishes to accommodate diverse architectural design requirements.

Sustainable Materials

Made from natural clay materials with environmentally responsible manufacturing processes and full recyclability.

Low Maintenance Requirements

Self-cleaning properties and color-fast finishes minimize ongoing maintenance needs and lifecycle costs.

Technical Information

Comprehensive specifications and installation guidance for professional applications

Specification Value Standard
Dimensions (W×H×L) 20-80mm × 40-120mm × 300-1200mm Custom sizes available
Weight 18-25 kg/m² ASTM C1272
Water Absorption ≤ 6% ASTM C373
Compressive Strength ≥ 50 MPa ASTM C773
Thermal Expansion 6.0 × 10⁻⁶ /°C ASTM C372
Fire Resistance Class A Non-combustible ASTM E119
Freeze-Thaw Resistance 100 cycles, no damage ASTM C1026
Color Options Natural, Glazed, Textured Custom colors available

Installation Steps

1

Substrate Preparation

Ensure structural substrate is level, clean, and meets load-bearing requirements. Install appropriate moisture barrier systems.

2

Framework Installation

Install aluminum or steel support framework according to engineering drawings with proper thermal expansion joints.

3

Baguette Mounting

Secure each baguette element using mechanical fixings, ensuring proper alignment and consistent spacing between elements.

4

Sealing & Finishing

Apply appropriate sealants at joints and connections. Conduct final inspection and quality control checks.

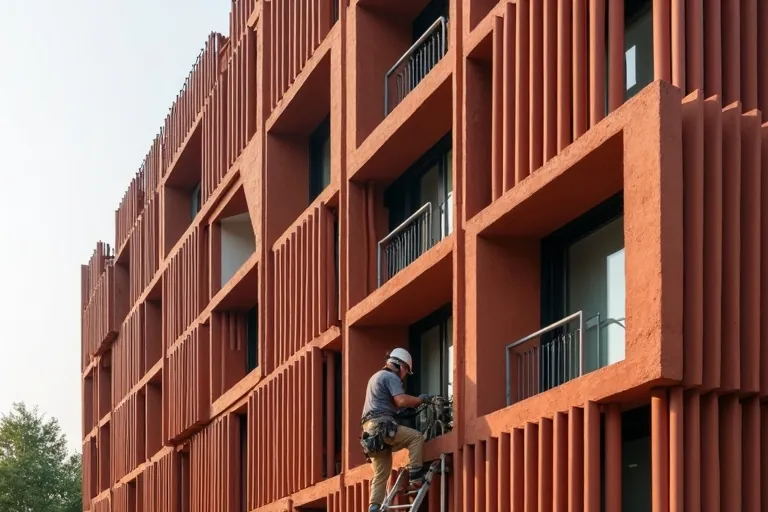

Installation

Application Examples

Versatile applications across diverse architectural projects and building types

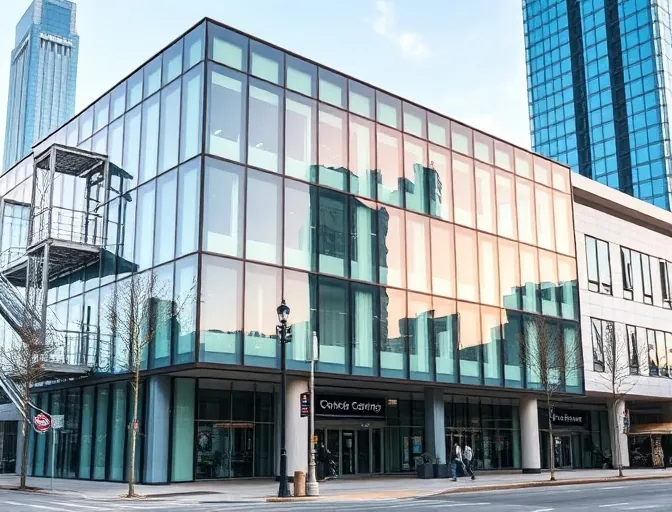

Commercial Facades

Commercial Facades

Office buildings and retail complexes featuring vertical baguette arrangements for modern corporate aesthetics.

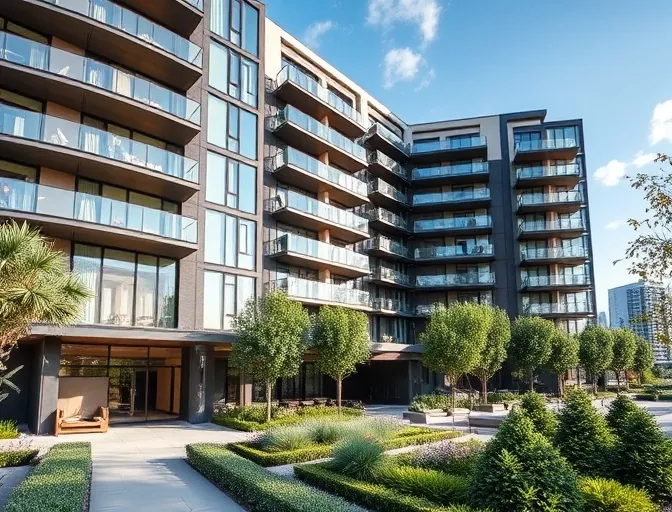

Residential Exteriors

Residential Exteriors

Apartment complexes and housing developments utilizing horizontal baguette patterns for residential warmth.

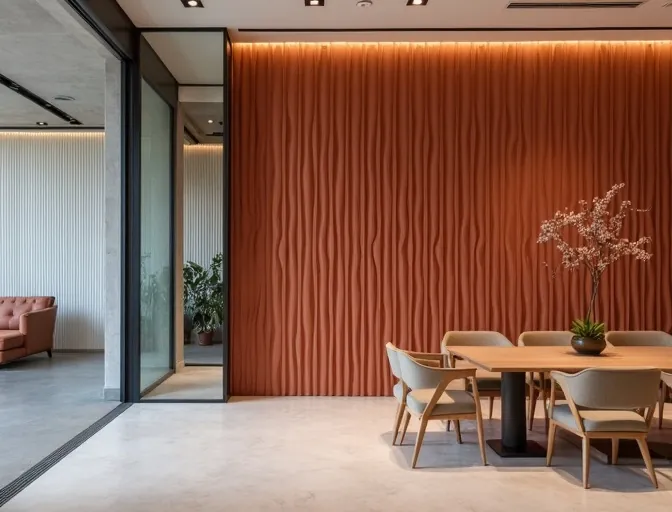

Interior Accent Walls

Interior Accent Walls

Lobby areas and feature walls creating sophisticated interior environments with dimensional texture.

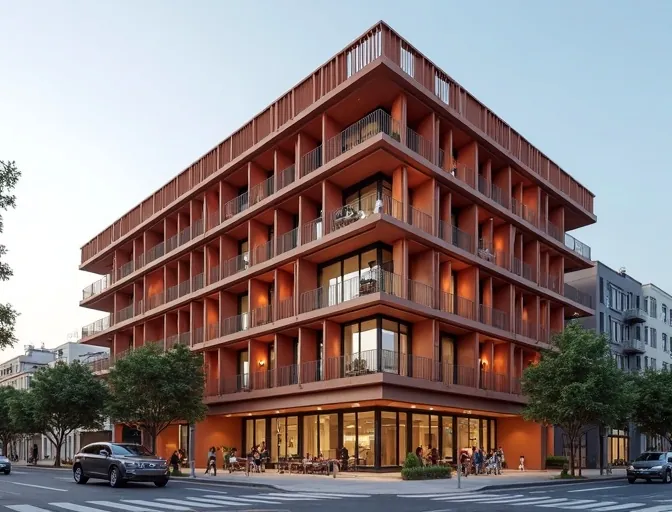

Mixed-Use Developments

Mixed-Use Developments

Integrated projects combining multiple baguette orientations for dynamic architectural expressions.

Related Products

Complementary terracotta solutions that work perfectly with Terracotta Baguette

Brick Cladding System

Brick Cladding System

Complete modular brick systems offering efficient installation and superior performance for commercial projects.

Learn More →
Clay Paver

Clay Paver

Durable paving solutions for outdoor spaces, combining natural beauty with exceptional weather resistance.

Learn More →
Terracotta Brick

Terracotta Brick

Classic terracotta bricks combining traditional aesthetics with modern manufacturing precision and quality.

Learn More →

Technical Support & Resources

Access comprehensive documentation and expert support for your project

Installation Guides

Detailed PDF installation manuals with step-by-step instructions and best practices.

Technical Drawings

CAD files and technical drawings for architectural planning and specification.

Product Specifications

Complete technical specification sheets with performance data and certifications.

Expert Consultation

Connect with our technical team for project-specific guidance and support.

Ready to Transform Your Project?

Contact our expert team to discuss your Terracotta Baguette requirements and receive personalized technical support for your architectural project.
